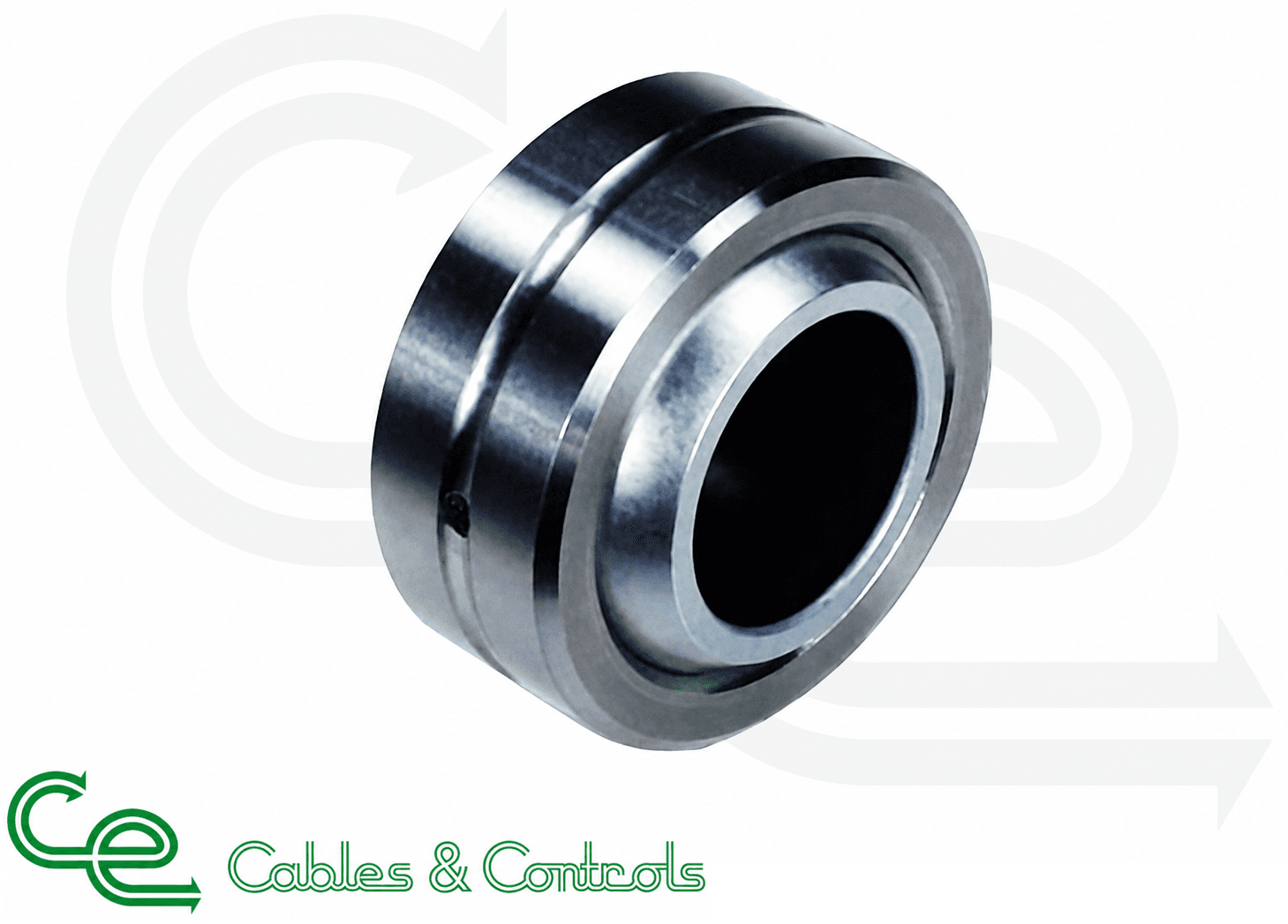

COM Series PTFE-Lined Spherical Plain Bearings – 3/8" & 1/2"
Inch-series spherical plain bearings with a maintenance-friendly PTFE composite liner.
$18.00
In stock — dispatch within 1–2 business days
Free standard postage within AustraliaSecure PayPal checkoutPrices include GST
PRODUCT DETAILS
About this product
COM-series spherical plain bearings accommodate angular movement and misalignment between connected components. The outer ring is pressed around the inner ring and the race is lined with a low-friction PTFE composite material. These bearings are suitable for control linkages, machinery, suspension-related assemblies and other applications requiring compact angular articulation. This is an inch-dimension bearing series; confirm both the bore and outside diameter against the dimensional schematic before ordering.
Key dimensions
All measurements are in millimetres.
COM69.525 mm bore (3/8 inch); 20.64 mm outside diameter; 10.31 mm inner-ring width; 7.92 mm outer-ring width; approximately 10° permissible misalignment.
COM812.700 mm bore (1/2 inch); 25.40 mm outside diameter; 12.70 mm inner-ring width; 9.91 mm outer-ring width; approximately 9.5° permissible misalignment.
