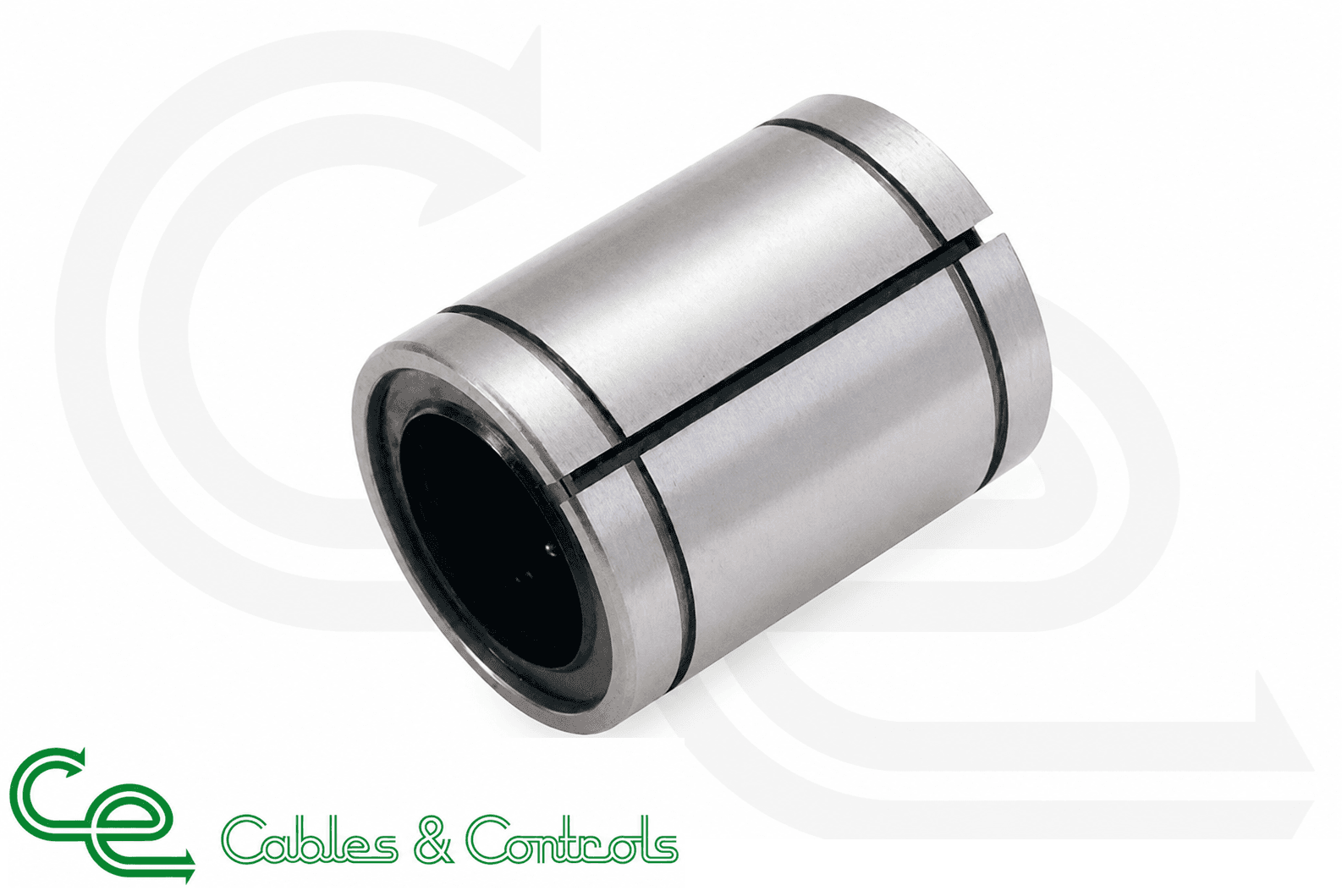

LM Series Linear Motion Ball Bearings – LM6UU, LM8UU & LM10UU
Bearings / Linear Bearings

LM Series Linear Motion Ball Bearings – LM6UU, LM8UU & LM10UU

Compact sealed linear ball bearings for smooth, low-friction movement along precision round shafts.

$12.00

In stock — dispatch within 1–2 business days

Free standard postage within AustraliaSecure PayPal checkoutPrices include GST
PRODUCT DETAILS

About this product

LM-series linear ball bearings provide smooth, low-friction movement along a matching precision round shaft. Recirculating ball circuits support repeated straight-line travel, making these bearings suitable for CNC equipment, 3D printers, automation systems, machinery, guides and other linear-motion applications. The resin retainer holds the circulating balls, while seals at both ends help retain lubricant and limit contamination. Correct shaft diameter, shaft condition, alignment, lubrication and housing fit are important for reliable operation. These bearings are intended for linear movement rather than continuous rotary operation.

Key dimensions

All measurements are in millimetres.

LM66 mm shaft bore; 12 mm outside diameter; 19 mm overall length; four ball circuits; dynamic load rating 206 N; static load rating 265 N.
LM88 mm shaft bore; 15 mm outside diameter; 24 mm overall length; four ball circuits; dynamic load rating 274 N; static load rating 392 N.
LM1010 mm shaft bore; 19 mm outside diameter; 29 mm overall length; four ball circuits; dynamic load rating 372 N; static load rating 549 N.

Refer to the dimensional schematic and confirm the shaft diameter before ordering.
